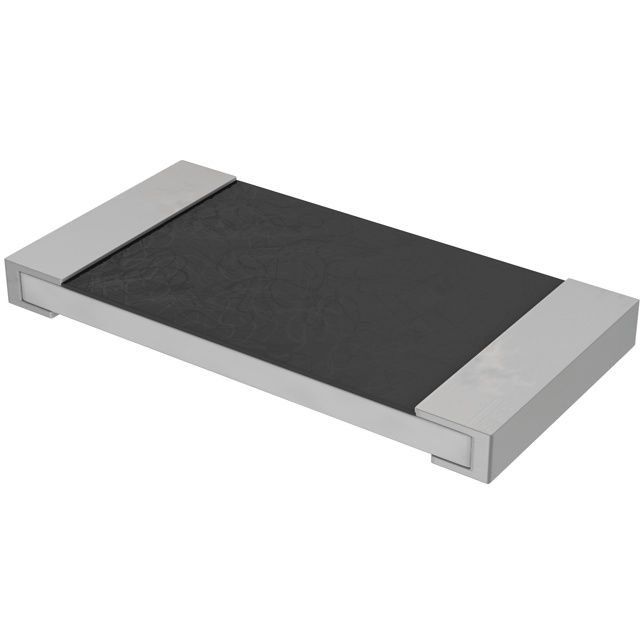

150 Ohm 1 Watt 2512 ±%1 CHF1-01-1500
5.844,92 TL
SPECIFICATIONS
| Mfr Package Description | CHIP, ROHS COMPLIANT |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Resistor Type | FIXED RESISTOR |
| Construction | Chip |
| JESD-609 Code | e3 |
| Manufacturer Series | RC2512 |
| Mounting Feature | SURFACE MOUNT |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 155 Cel |
| Package Height | 0.5500 mm |
| Package Length | 6.35 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | SMT |
| Package Width | 3.1 mm |
| Packing Method | TR, EMBOSSED, 7 INCH |
| Rated Power Dissipation (P) | 1 W |
| Rated Temperature | 70 Cel |
| Resistance | 150 ohm |
| Series | RC2512(J TOL) |
| Size Code | 2512 |
| Sub Category | Fixed Resistors |
| Technology | METAL GLAZE/THICK FILM |
| Temperature Coefficient (ppm/Cel) | -200,200 |
| Terminal Finish | MATTE TIN |
| Terminal Shape | WRAPAROUND |
| Tolerance | 5 % |
| Working Voltage | 200 V |
| Additional Feature | LASER TRIMMAB |
